SEETEC SDI⇌HDMI Cross Converter SCH
Model
SCH (SDI ⇌ HDMI Cross Converter)
Input
1 X BNC 3G/HD/SD-SDI
1 X HDMI HDMI
Output
2 X BNC 3G/HD/SD-SDI
1 X HDMI HDMI
SDI Support Format
3G-SDI:1080P(60/59.94/50)
HD-SDI:1080P(30/29.97/25/24)
1080I(60/59.94/50)
1080PsF24
720P(60/59.94/50/30/25/24)
HDMI Support Format
1080P(60/59.94/50/30/29.97/25/24)
1080I(60/59.94/50)
1080PsF24
720P(60/59.94/50/30/25/24)
General
Power Consumption ≤4.2W
Input Voltage DC 5～24V
Connector DC 12V

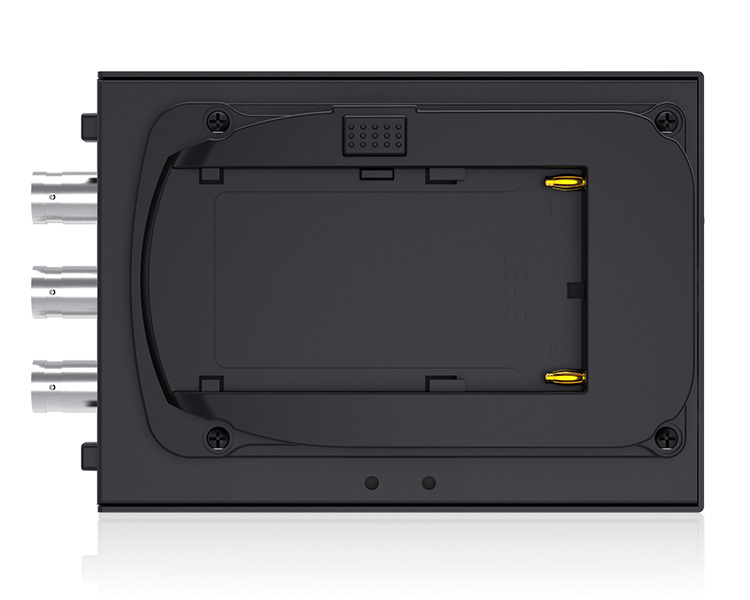

Battery Plate F970 (Standard); D28S, E6 (Optional)
WorkingTemperature -20°C~60°C
Storage Temperature -30°C~70°C
Unit Size (mm) 108.5L×78.8H×23D
Unit Weight 230g/ 260g (With F970 Plate)
- SEETEC Mini Converters are incredibly miniature broadcast quality video converters that are available in three models: SDI -HDMI Cross Converter, SDI-HDMI Converter, HDMI-SDI Converter.
- Standard 1/4-20″ thread for flexible installation. You get HDMI and professional 3G-SDI connections to work with almost all SD and HD formats.
- Flexible dual power supply system supporting F970, D28S, E6, rechargeable battery, as well as power adapter.
SDI ⇌ HDMI Converter
Input: 1X HDMI；1X SDI
Output: 1X HDMI； 2X SDI - Miniature broadcast quality converters!
SEETEC mini converters are so small that you can use them anywhere! Whether you carry them in your laptop bag or in your outdoor broadcast van and in travel cases. - Enjoy the wonderful visual experience

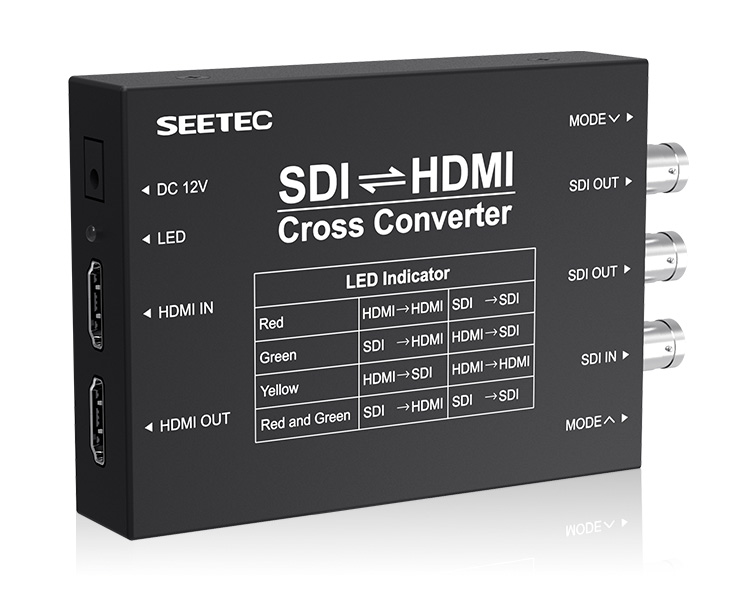

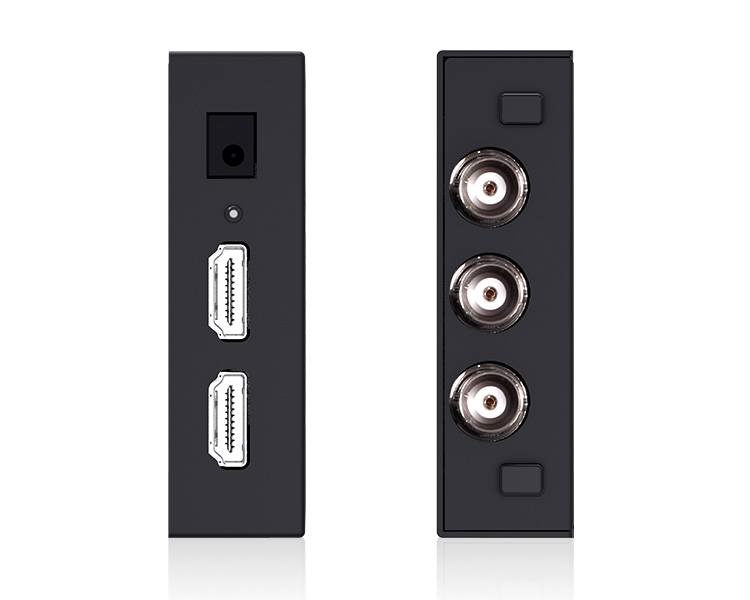

High-performance digital chip, 1080P HD resolution, perfect display, guaranteeing high-definition image quality without distortion. - The SEETEC mini converter is equipped with full-size 3G-SDI and HDMI connectors! SDI connections are multi-speed and compatible with SD and HD-SDI hardware. The Mini SDI ⇌ HDMI Cross Converter is equipped with one SDI input, two SDI outputs, one HDMI input and one HDMI output, which allows you to connect it to multiple devices.
- Simple operation, easy setup.

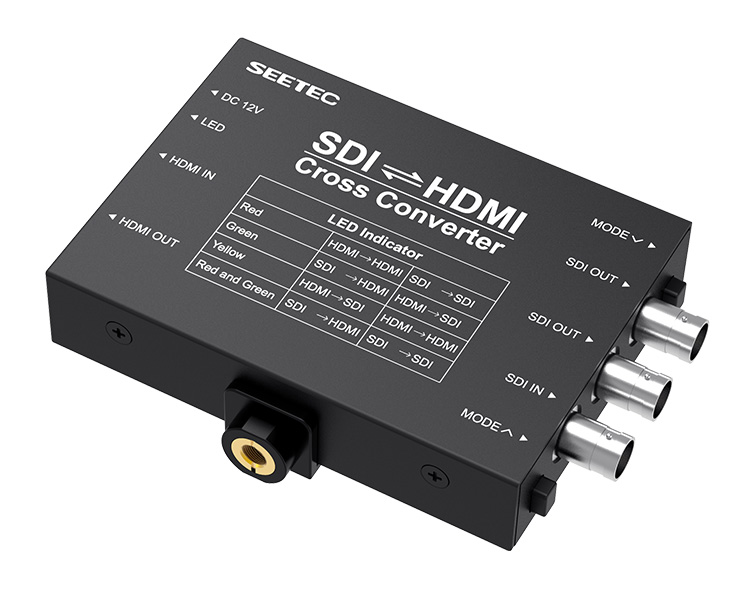

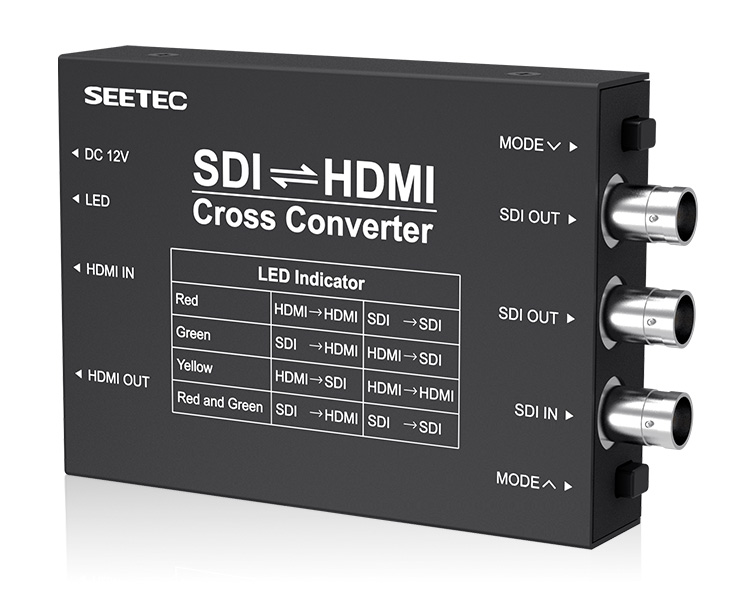

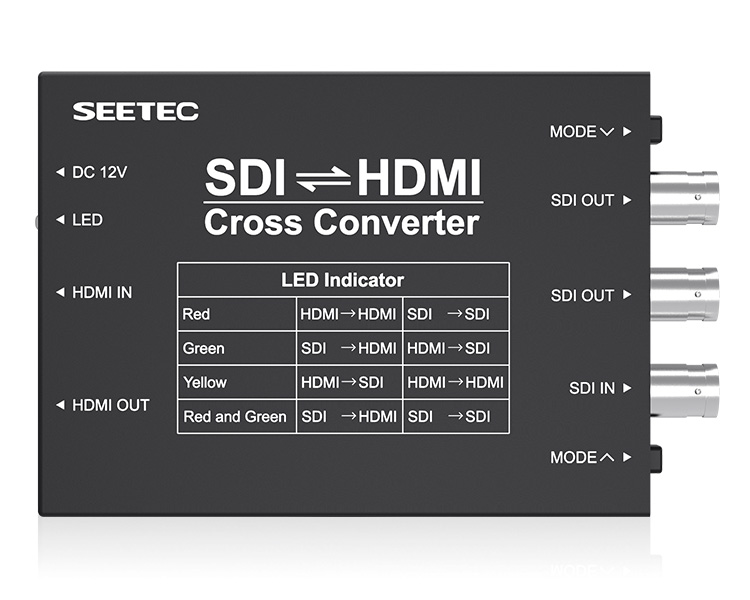

- The SDI ⇌ HDMI cross converter provides an LED indication according to the signal transmission mode you have selected. There is even a printed switching circuit on the converter, so you can quickly make the adjustment, just press the mode up/down button to switch the indicator color.
Red: HDMI to HDMI, SDI to SDI
Green: SDI to HDMI, HDMI to SDI
Yellow: HDMI to SDI, HDMI to HDMI
Flashing red/Green: SDI to HDMI, SDI to SDI.
http://www.seetec.cn/ShowInfo.aspx?id=29&py=SDI-HDMI-Cross-Converter-SCH
If you are interested in our products or need detailed advice, please contact us at the contacts below.
Sales Department
Mob.: +7 747 47 00 950
Email: sales@mediashop.kz
Technical Support and Consultation Department
Mob.: +7 747 47 00 940
Email: Support@mediashop.kz
Or fill in the feedback form and we will contact you in a short time.
Related products
-
Micro Converter BiDirectional SDI/HDMI 3G wPSU
Read moreConnections
SDI Video Inputs
1 x SD, HD or 3G-SDI.SDI Video Outputs
Automatically matches the HDMI video input.HDMI Video Inputs
HDMI Type A in.HDMI Outputs
HDMI Type A out.Multi Rate Support
Auto detection of SD or HD.Updates, Configurations and Power
USB Type‑C.Reclocking
YesPower Requirements
Power Supply
+5V universal power supply included with international socket adapters for most countries.Power Consumption
2.5 WOperational Voltage Range
4.4 to 5.25V DCEnvironmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)Storage Temperature
-20° to 60° C (-4° to 140° F)Relative Humidity
0% to 90% non-condensing -

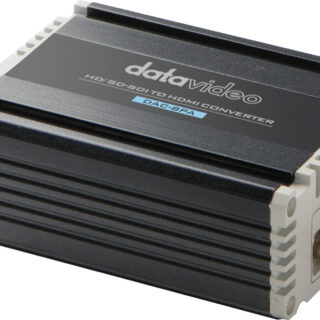

SDI to HDMI Converter DAC-8PA
Read moreConvert SDI to HDMI with Audio De-Embedding Options The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-embed audio to a stereo RCA output. Supports 1080p 50/60 Automatische Eingangssignalerkennung und HDMI-Support für High Color (Deep Color). Unterstützt Stereo-Audioausgang Ein SDI-Loopthrough-Ausgang und ein HDMI-Ausgang. Aluminiumlegierung und …
-

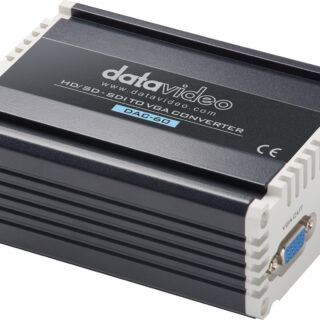

SDI to VGA Converter DAC-60
